Manual
Import

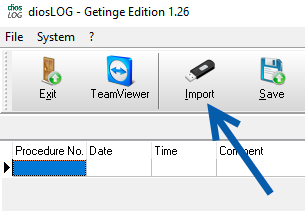

The USB flash drive will be automatically recognized by the PC and receives a drive letter. Remember this letter. Afterwards open the diosLOG software and click the Import button.
Please choose in the now opened window the import file of the USB flash drive, that is called indata.clg or indata.log. Click the Open button finally.

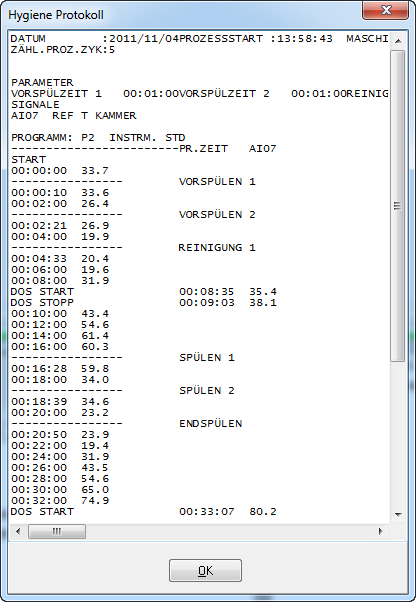

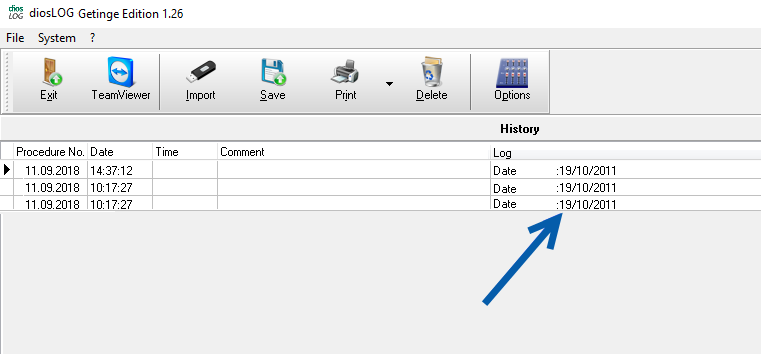

The log file(s) will be saved in the diosLOG software. The log just saved is displayed by double clicking on the log line. The log data displays properly completed, as well as improper or cancelled operations.
The created log can be printed out on the DINA4-Printer.
We strongly recommend that you back up all stored log data on an external data medium regularly via the data-backup-software in the options.

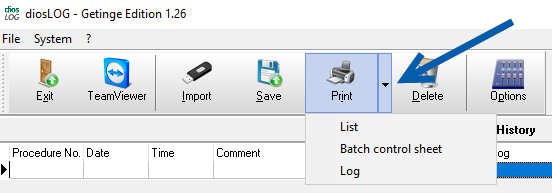

Batch control sheets will be printed using the print selection button.
The use of the diosLOG softwrae does not replace the need to keep a batch control sheet and record every operation!
